Description

********NO LONGER AVAILABLE********

SET UP AND PREP FEES MAY APPLY

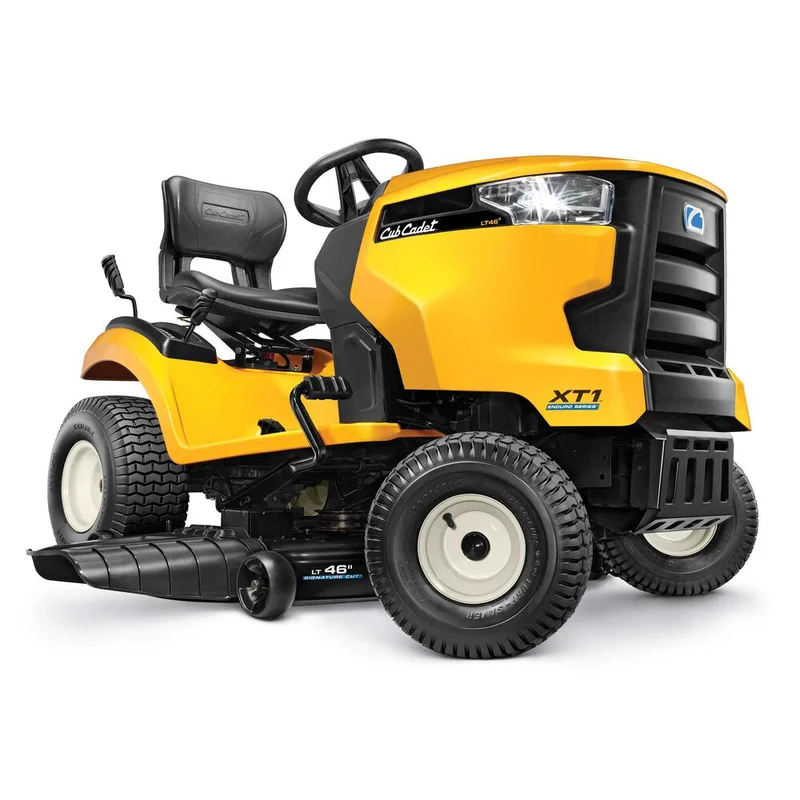

• The Cub Cadet XT1 LT46 is powered by a 22 hp KOHLER 7000 Series twin cylinder engine.
• 46-inch stamped, 12-gauge, twin-blade deck with 12 cutting positions.
• Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
• 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours.
• Ideal for mowing up to 1.5 acres of mostly flat terrain and a few obstacles.

Engine

• Engine Brand:Kohler KT725-3078
• Engine Displacement:725cc
• Fuel Tank Capacity:  3.0 gal.
• Cylinders/Material:  Twin
• Engine Start:Key
• Engine Oil Capacity:  2 qts.
• Charging System:  12 amp regulated
• Air Filter:  Single element
• Oil Filter:  Yes

Battery

• Battery:12V 230 cold crank amps
• Battery : Standard Lead Acid

Drive System

• Transmission:Hydrostatic, foot
• Forward Speed:5.5 MPH
• Reverse Speed:3.1 MPH
• Rear Axle:3/4″ w/dual PM steel drive hubs
• Transmission Housing:Die-Cast Aluminum
• Transmission Type:Tuff Torq TL-200

Cutting Deck

• Deck Cutting Width:  46″
• Cutting Modes:Discharge/mulch/bagging
• Deck Wash:Included
• Deck Material:Steel, 12-gauge
• Deck Attach/Removal:QuickAttach™ (no tools required)
• Deck Engagement (PTO):Manual lever
• Deck Construction:Stamped
• Spindle Construction:3/4″ with steel cap and Triple Lip Sealed
• Blade(s):2
• Deck Lift:Lever
• Cutting Height Range:1″ – 4″
• Anti-Scalping:2 ball, 2 narrow
• Deck Positions:12 positions

Warranty

• Warranty:3-year/unlimited hour warranty
• Frame Warranty:5-year/unlimited hour warranty
• Front Axle Warranty:5-year/unlimited hour warranty

Chassis

• Frame:Robotically welded
• Front Axle:Cast iron
• Turning Radius:16″
• Rear Tow Hitch:Included
• Corrosion Protection:E-coating

Controls

• Cruise Control:Included
• Brakes:Automotive-style disc
• Steering Control:Manual sector and pinion
• Display:Hour meter

Comfort

• Seat Type:15″ high-back seat
• Seat Suspension:Seat spring
• Arm Rests:Seat Adjustment
• Floor Mats Traction:  Pad

Additional Specifications

• Mulch Kit:Optional
• Headlight(s):2 – LED
• Discharge Chute:Included
• Cup Holder:Included
• Operator Presence System:Included
• Bagger:Optional
• Model Number:13APA9CT010

• AIR FILTER:32 883 09-S1
• OIL FILTER:12 050 01-S
• FUEL FILTER:25 050 22-S1
• SPARK PLUG:25 132 23-S RC12YC
• DECK BELT:954-05022A
• DRIVE BELT:954-05027B
• BLADES ORDER 2:942-04244A
• XTREME BLADES:   942-04290-X
• IGNITION KEY:925-1745A
