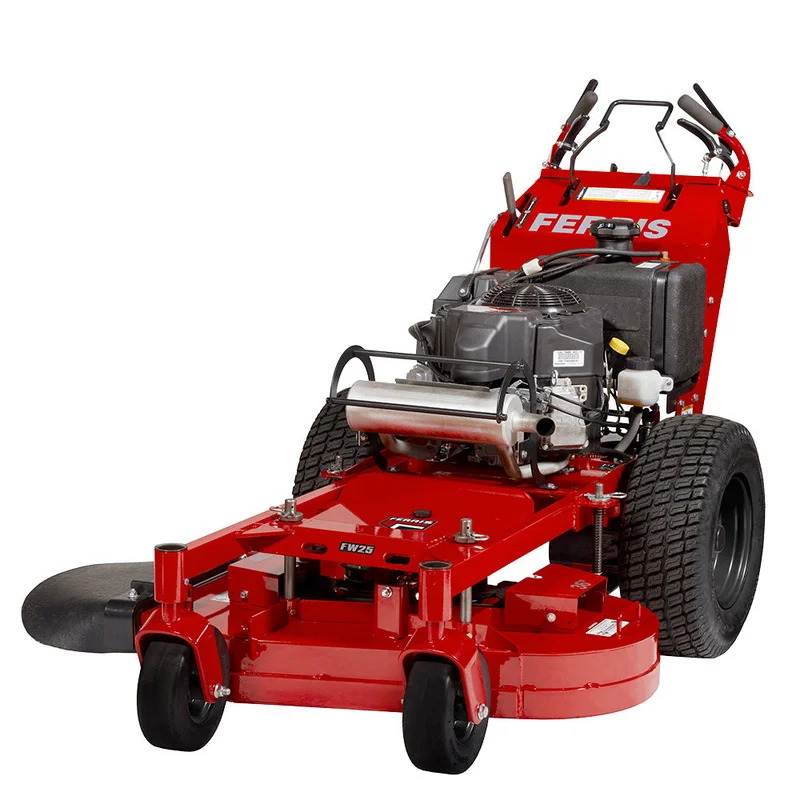

Features

Cruise Control to Set Speed

Adjust the mower’s speed without removing your hands from the control handles with the improved, ready-access cruise control bar. Simply press forward to increase speed and pull back a slow down. A convenient speed indicator is placed within easy view on the control panel.

Easier-To-Use Controls

The CC™ Centralized Control lawn mower handle design places the operator’s hands in the ideal position to access all in-demand controls. Ergonomic operator presence, steering and reverse levers on both handles operate with a light touch to reduce operator fatigue. Easily adjust control tensions to fine tune for different operating conditions.

Keeps the Engine Running

Need to walk away from the mower to move an obstacle or debris? The new PTO switch allows the operator to stop the mower blades quickly and easily. While mowing, simply step on the centralized foot activated neutral pedals or pull back on the cruise control bar to place in neutral. Then, remove your hands from the controls. The blades will stop while the engine continues to run. Restarting the blades is just as easy. Place your hand on the controls, pull up the PTO switch and set your speed with the cruise control bar.

Easy-Access Neutral Position

New dual access neutral pedals take the guesswork out of finding neutral, simplifying operation and saving time. The operator can use either foot to put the mower in neutral. The neutral position is clearly identified on the speed indicator on the dash.

Well Built, Well Protected

Thick, 1/4″ steel guards protect the front deck mower’s transmission when going over curbs or rolling on and off a trailer – the type of rough handling that occurs daily under commercial use and can render lesser mowers inoperable. The design also reduces build up of debris to improve air flow and allow for access to the filter for maintenance.

Robust Deck Mounting

The deck mounting system provides easier deck leveling, improved flexibility over terrain, easy-access grease points and more durable wear points for reduced maintenance.

Longer Belt Life

The parts that wear out the soonest don’t have to go so soon. The Ferris-engineered deck drive belt system and larger pulleys provide gentler belt tension, which – combined with our unique debris shield – extends belt life and reduces wear on bearings.

Easy Reach Parking Brake

We located the parking brake handle conveniently in front of the control panel, providing instant access with minimal operator effort to reach and engage.

Solid Construction

All Ferris walk-behind mowers are ruggedly built nose to tail to withstand daily commercial-duty operation and transport. Robust 1/4″ steel engine deck construction stands the test of time.

Easy to Secure

Dedicated tie-down points located in the front and the rear makes trailering this commercial lawn mower between jobs secure and easy.

Specifications

Model Number5901887US MSRP ^$7,549.00Engine BrandKawasaki® FS600VEngine Power Rating (hp)*18.5Displacement (cc)603PTOElectricCylinders2StarterElectricFuel Tank Capacity (gal)5Cutting Width (in)48Cutting Height (in)1.5 – 4.5SpindlesAluminum GreaseableDeck ConstructionFabricated 10-gaugeSuspensionN/ATransmissionDual, commercial Hydro-Gear® ZT-3100® transaxles with 7″ mounted cooling fansDrive Axles (in)1Caster Tires (in)9 x 3.5-4, Flat-freeDrive Tires (in)20 x 7-10Ground Speed-Fwd (mph)0-6Ground Speed-Rev (mph)0-3Overall Length (in)Standard: 78Overall Width (in) Deflector Down/Deflector Up59.75 / 52.5Dry Weight (lbs)694SeatN/AControl TypeStandard, Pistol GripInstrumentationDual-function hour meterParking Brake/Safety CircuitHand-operated internal transaxle brakeSafety Group/ControlsOperator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controlsWarranty (Engine) †3-Year limited manufacturer’s warrantyWarranty (Balance of Machine) †2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator’s manual for complete details.

Illustrated Parts List

Wiring Diagram Schematic



Attachments

Grass Catcher 5101771, Mount 5600885, Weight Kit 5600861

A lightweight durable fabric bag with hard plastic bottom attaches quickly. Capacity: 3.75 bushels. Fits: 36″ and 48″ models.

Mulch Kit 5600582

Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

One Wheel Sulky 5601140

Includes mounting hardware.

Two Wheel Sulky 5601141

Includes mounting hardware.

LED Light Kit

Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions. Available on 48″ models.

Lawn Striping Kit 5600963

Rubber flap system lays down clippings to create eye catching grass patterns across the landscape. Fits 48″ models.

Flat-Free Caster Tires

Run all day with no flats, eliminates down time. Fits 36″ and 48″ models.

Metal Grass Catcher 5105070 Mount 5105072

Rugged steel-framed catcher has handles that make attaching and removing a breeze. Capacity: 3.5 bushels. Fits 36″ and 48″ models.
