Description

 ********NO LONGER AVAILABLE********

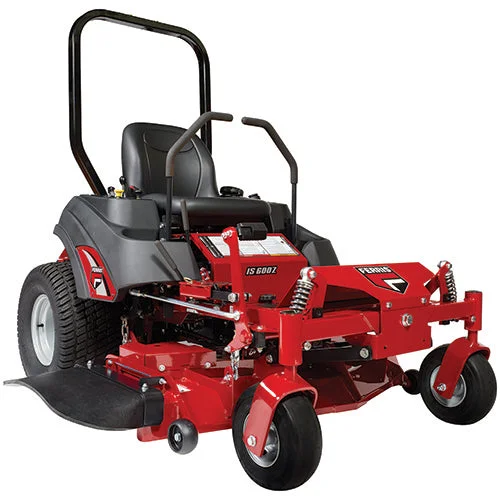

IS^® 600Z Zero Turn Mower

THE BEST BUDGET ZERO TURN FOR LANDSCAPERS

Featuring our patented suspension technology, heavy-duty Hydro-Gear Drive System and speeds up to 10 mph, this mower will give you all you’re looking for and more. The IS600Z is capable of tackling tight places, providing maximum maneuverability and productivity.

Features

Operator Convenience

Ergonomic riding mower control panel features cup-holder and fuel gauge.

Patented Suspension

Suspension system consists of rear coil-over-shocks  and pivoting front axle with shocks.

Ride-On Mower Warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years , for unlimited hours. We are committed to providing performance, productivity and durability.

Exceptional Performance

Patent-pending steering system delivers exceptionally smooth performance.

Integrated Transmissions

Commercial Hydro-Gear ZT-3200 (Not shown) transaxles are designed for high performance and are fully serviceable.

Easy Access

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

Protection

Heavy-duty bumper protects the engine while also allowing for easy service access.

Smooth Controls

Smooth, precision controls last longer as a result of pillow block bearings on control mounts.

Mower Spindles

Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

Cut Height

Foot-operated deck lift, with adjustable pedal, change cut height in 1/4″ increments from 1.5″- 4.5″.

Acres Per Hour

Mows up to 4 acres per hour, based on 80% efficiency.

Miles Per Hour

Ground speed is up to 10 mph (48″) and 8 mph (44″), reverse 4 mph.

_{† See operator’s manual or dealer for complete warranty details. Refer to engine operator’s manual for engine warranty.}

Specifications

Model Number5901776Engine BrandKawasaki FS691VEngine Power Rating *23Displacement (cc)726PTOElectricCylinders2StarterElectricFuel Tank Capacity (gal)5.5Cutting Width (in)52Cutting Height (in)1.5 – 4.5SpindlesAluminumDeck Construction10-guage fabricatedSuspensionFront and rear adjustable dual coil-over shocksTransmissionDual commercial Hydro-Gear® ZT-3200® transaxles with 7″ cooling fansDrive Axles (in)1.125Caster Tires (in)13 X 6.5-6Drive Tires (in)22 x 11-10Ground Speed-Fwd (mph)0-10Ground Speed-Rev (mph)0-5Overall Length (in)80Overall Width (in) Deflector Down/Deflector Up67/57Dry Weight (lbs)972Seat PackageMid-back seat with arm restsInstrumentation/Hour MeterEngine and PTO hour meterCertified Roll-over Protection System180° FoldableControls / Safety GroupAdjustable twin fold out 1″ tubular steering levers with comfort gripParking Brake / Safety CircuitInternal transaxlesWarranty (Engine) †
Warranty (Balance of Machine) †4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

Attachments

Turbo-Pro™ Double Bag Hard Top Collection System 5601095

Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal. Capacity: 10 cubic feet.

Mulch Kit 5600584

Select kits include dedicated mulching blades, baffels, hardware and instruction sheet.

Trailer Hitch Kit 5600031

Will accept a 1/2” shank ball and comes complete with hardware.

Light Kit 5600647

Select models are pre-wired for simple installation.

Lawn Striping Kit 5600085

Rubber flap system lays down clippings to create eye catching grass patterns across the landscape.

Folding ROPS 5103629

180° fold over ROPS (roll over protection structure) with retractable seat belt.

Flat-Free Caster Tires 5023280

Run all day with no flats, eliminates down time. Standard on select models.

DOWNLOAD 5901776 PARTS MANUAL

• AIR FILTER:11013-7049
• PRE-FILTER:  11013-7046
• OIL FILTER:49065-0721
• FUEL FILTER:49019-0027
• SPARK PLUG:BPR4ES
• PTO BELT:  N/A
• DECK BELT:5105529
• DRIVE BELT:5103885
• TRANS FILTER:HG-52114P
• BLADES:5101756S
• XTREME BLADES: N/A
• IGNITION KEY:5022789
• ENGINE OIL:
