********NO LONGER AVAILABLE********

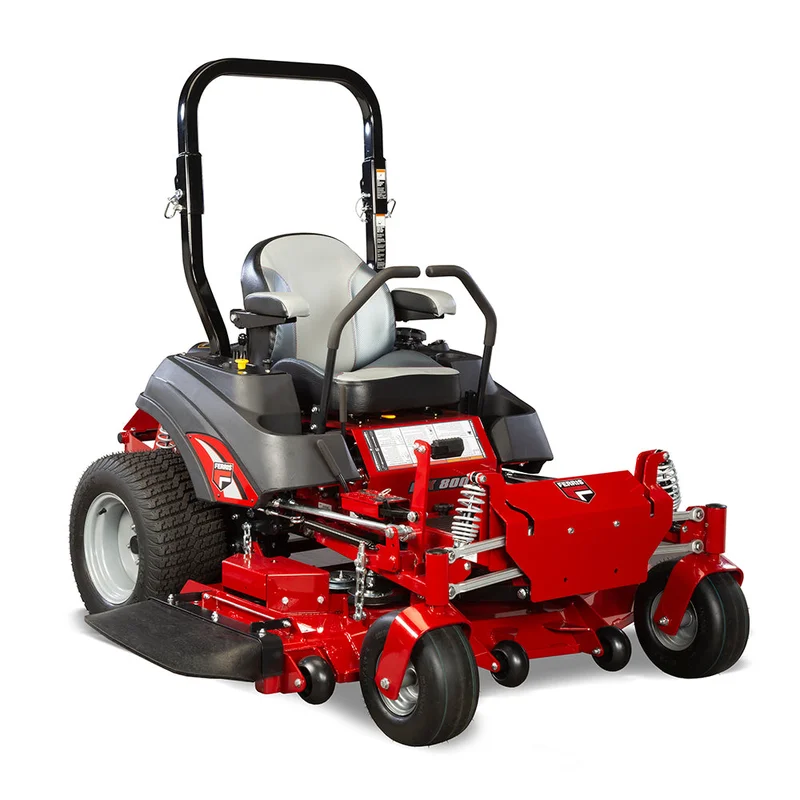

ISX™ 800 Zero Turn Mower

AFFORDABLE COMMERCIAL ZERO TURN WITH NEXT GENERATION FERRIS SUSPENSION TECHNOLOGY

Featuring the next generation of Ferris suspension technology – ForeFront Suspension, a 2-belt iCD cutting system, heavy-duty Hydro-Gear^® drive system and travel speeds up to 10 mph, the ISX 800 is engineered to increase efficiency and operator comfort.

Features

ForeFront™ Suspension System

The system utilizes four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Ride-On Mower Warranties

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Integrated Transmission

Commercial Hydro-Gear® ZT-3400™ transaxles are designed for high performance and are fully serviceable.

Easy Access

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

iCD™ Cutting System

iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).

Mower Spindles

Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.

Acres per Hour

Mows up to 5 acres per hour, based on 80% efficiency.

Miles per Hour

Up to 10 MPH ground speed, reverse 6 MPH.

Specifications

Model Number5901790  ENGINE 49T877-0010-G1Engine Brand Briggs & Stratton^® Commercial SeriesEngine Power Rating *27Displacement (cc)810PTOElectricCylinders2StarterElectricFuel Tank Capacity (gal)5.5Cutting Width (in)52Cutting Height (in)1.5 – 5SpindlesAluminumDeck ConstructioniCD™ Cutting SystemSuspensionForeFront™ Suspension System – Front independent with four steel control rods for the ultimate in comfort and controlTransmissionDual, Commercial Hydro-Gear ZT-3400^®Drive Axles (in)1.125Caster Tires (in)13 x 6.5 – 6Drive Tires (in)23 x 10.5 – 12Ground Speed-Fwd (mph)0-10Ground Speed-Rev (mph)0-5Overall Length (in)81Overall Width (in) Deflector Down/Deflector Up65/57Dry Weight (lbs)1119Seat PackagePremium adjustable seat with arm restsCertified Roll-over Protection SystemStandard, 180° foldableControls / Safety GroupSeat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controlsParking Brake / Safety CircuitInternal TransaxlesWarranty (Balance of Machine) †4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.

_{† See operator’s manual or dealer for complete warranty details. Refer to engine operator’s manual for engine warranty.}

DOWNLOAD PARTS MANUAL

• AIR FILTER:  798897
• PRE-FILTER:  593217
• OIL FILTER:  696854
• FUEL FILTER:  845125
• SPARK PLUG:  792105 RC12YC
• PTO BELT:  5106636
• DECK BELT:  5105037
• DRIVE BELT:5103653
• TRANS FILTER:  HG-52114P
• BLADES:  5101756S
• XTREME BLADES: N/A
• IGNITION KEY:  5022789
• ENGINE OIL:
