Toro OEM 138-6050 Mower Deck Front Adjustable Mount Rod Fit Toro Select 42″ Timecutter ZS, MX, Standard and MyRide Models (Replaceable Cast-Aluminum Axles) – 50″ Timecutter MX Model 74694 Only.

Description

This genuine Toro OEM 138 6050 Mower Deck Front Mounting Rod performs Dual Functions—Stabilizing the Front Section of the Mower Deck while working in conjunction with a pivot pin to permit controlled floating movement without sacrificing structural integrity. Its precision-threaded design enables straightforward front-end height adjustments through a simple nut mechanism, allowing operators to achieve optimal Mower Deck pitch for superior cutting results. Manufactured to exacting factory specifications, this Adjustable Mount Rod ensures perfect compatibility with a Select range of Toro Timecutter Models including Select 42″ Timecutter ZS, MX, Standard and My-Ride Models (Models with Cast Aluminum Axles) – 50″ Timecutter MX Models (Model 74694 Only). Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart Below. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 138-6050 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

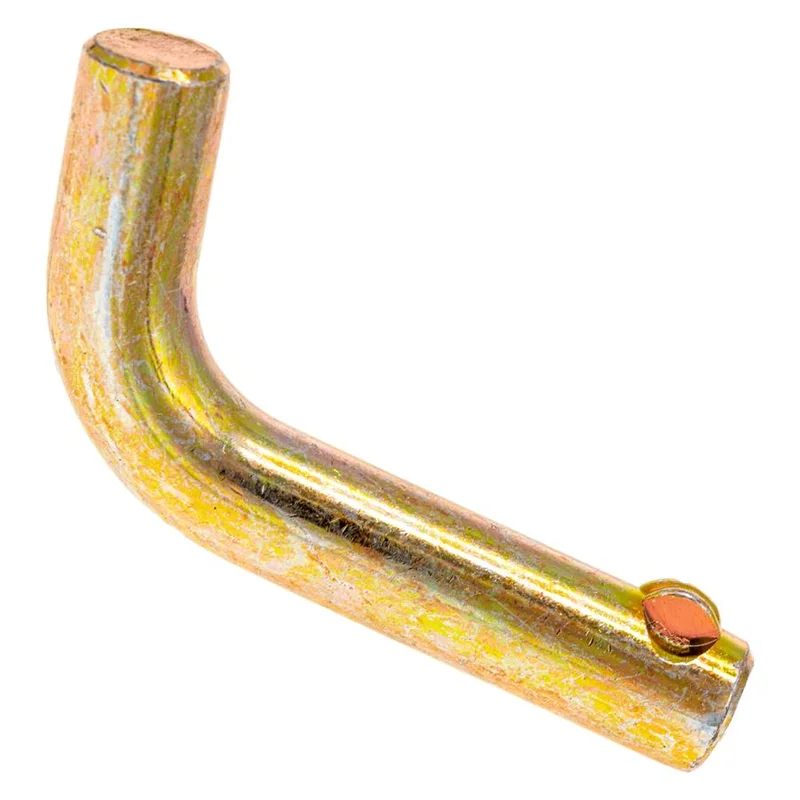

1. 119-8810 – PIVOT PIN – (Retains Mower Deck Front Mounting Rod to the Frame and Enables it to Pivot) x1 Per Mower Deck Mounting Rod
2. 139-1725 – LOCK NUT – (Retains Mower Deck Front Mounting Rod to the Pivot Pin) x1 Per Mower Deck Mounting Rod
3. 139-2562 – COTTER/CLIP PIN – (Retains Mower Deck Front Mounting Rod to the Mower Deck) x1 Per Mower Deck Mounting Rod
4. 139-2611 – FLAT WASHER (Stabilizes Cotter/Clip Pin) x1 Per Mower Deck Mounting Rod

Specification

Model Fit:

TIMECUTTER

TIMECUTTER 42” ZS Series
– Model Numbers –
74685, 74687

TIMECUTTER 42” MX Series
– Model Numbers –
74690

TIMECUTTER 42” 4200 & ZR 4200 Series
– Model Numbers –
75740

TIMECUTTER 42” (STANDARD) Series
– Model Numbers –
75741, 75742

TIMECUTTER 42” (My-Ride) Series
– Model Numbers –
75743

TIMECUTTER 50” MX Series
– Model Numbers –
74694
